SPECIFICATIONS

Brand Name: MATEKSYS

Certification: CE

Is Electric: No Battery

Material: Composite Material

Model Number: PM20S-2

Origin: Mainland China

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

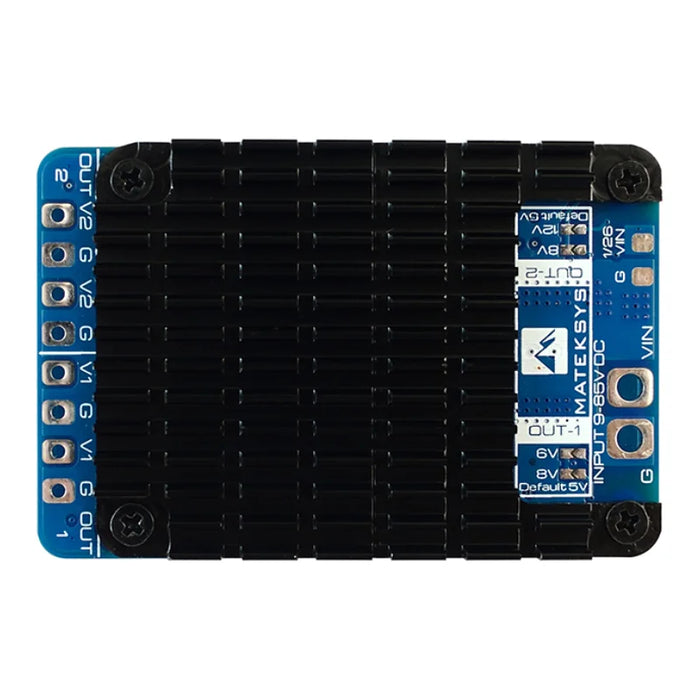

POWER MODULE PM20S-2

• PM20S-2 is made with 100V DC components.

• Support 9V to 85V DC operating Input voltage with 85V TVS protection

• 2x independent Step-Down Voltage Regulators

• Regulator 1 ,  5.3V / 6.1V / 8.1V output options.  supports typical continuous output current of up to 15A, Peak current of up to 22A.

• Regulator 2 ,  5.3V / 8.1V / 12.2V output options.  supports typical continuous output current of up to 15A, Peak current of up to 22A.

• 1K:25K voltage divider built-in for 3.3V based voltage ADC

• Size & Weight: 61x40x15mm, 63g

• 3D step file PM20S-2.zip

Regulator 1

• Output voltage 5.3V / 6.1V / 8.1V options.

• Output voltage tolerance 1.5%

• Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%

• Supports typical continuous output current of up to 15A,  Peak current of up to 22A.

• Output ripple  25mV (VIN=42V,  Output 5.3V @ 5A),  35mV (VIN=58V,  Output 5.3V @ 15A)

• Standby current: 10~30mA

• Reverse Input voltage protection: No

• Thermal Shutdown 150C

• Output Short-circuit tolerant (1 seconds)

• Overcurrent protection & self-recovery

• Tip: Input voltage >= 15V is required for continuous output current of 15A

Regulator 2

• Output voltage 5.3V / 8.1V/12.2V options.

• Output voltage tolerance 1.5%

• Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%

• Supports typical continuous output current of up to 15A,  Peak current of up to 22A.

• Output ripple  58mV (VIN=58V,  Output 12V @ 5A)

• Standby current: 10~30mA

• Reverse Input voltage protection: No

• Thermal Shutdown 150C

• Output Short-circuit tolerant (1 seconds)

• Overcurrent protection & self-recovery

• Tip: Input voltage >= 15V is required for continuous output current of 15A

Packing

• 1x PM20S-2
