MATEKSYS SVPDB-8S SERVO PDB with 4A BEC 5.5-36V TO 5-8.2V Power Distribution Board for RC FPV Airplane Fixed-Wing Servo Parts
Options (1)
Quantity
Share
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: MATEKSYS SERVO PDB
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: SERVO PDB
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Size: NA
Technical parameters: KV1100
Tool Supplies: Assembled class
Upgrade Parts/Accessories: SERVO PDB, W/ 4A BEC 5.5-36V TO 5-8.2V
Use: Vehicles & Remote Control Toys
Wheelbase: Bottom Plate
semi_Choice: yes
Specifications
5.5V to 36V Operating Input Range
Vx for servos, 5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
4A Continuous load current, 7A Burst
Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
Output Short-circuit tolerant (3 seconds)
No protection for reversed input polarity
Pins distance: 2.54mm

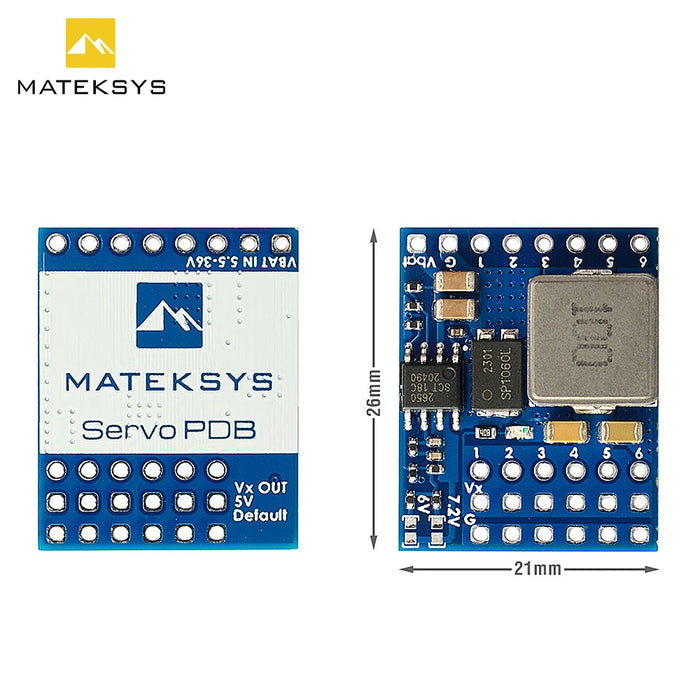

Size & Weight: 26 x 21 x 5mm, 4g
Packing: 1x SVPDB-8S, Dupont 2.54mm pins
Applications
Flight controllers without dedicated BEC for servos
Reducescircuitlossandvoltagedrop on servo power wires for big scale RC Airplane
