MATEKSYS CRSF TO PWM CONVERTER CRSF-PWM-B CRSF-PWM-6 CRSF-PWM-C for TBS Crossfire Nano RX SE DIY Parts
AED 38.99
AED 76.99
-49%
Options (2)
CRSF-PWM-6
CRSF-PWM-C
Quantity
In Stock
Expected ship within 48 hours after order.
Estimated Transit Time: 20-25 Days.
Payment | Every order you place with us is safe & secure
AED 38.99
AED 76.99
Share
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: MATEKSYS CRSF-PWM-B CRSF-PWM-6 CRSF-PWM-C
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: CONVERTER
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Size: NA
Technical parameters: KV1100
Tool Supplies: Assembled class
Upgrade Parts/Accessories: CRSF-PWM-B CRSF-PWM-6 CRSF-PWM-C
Use: Vehicles & Remote Control Toys
Wheelbase: Bottom Plate

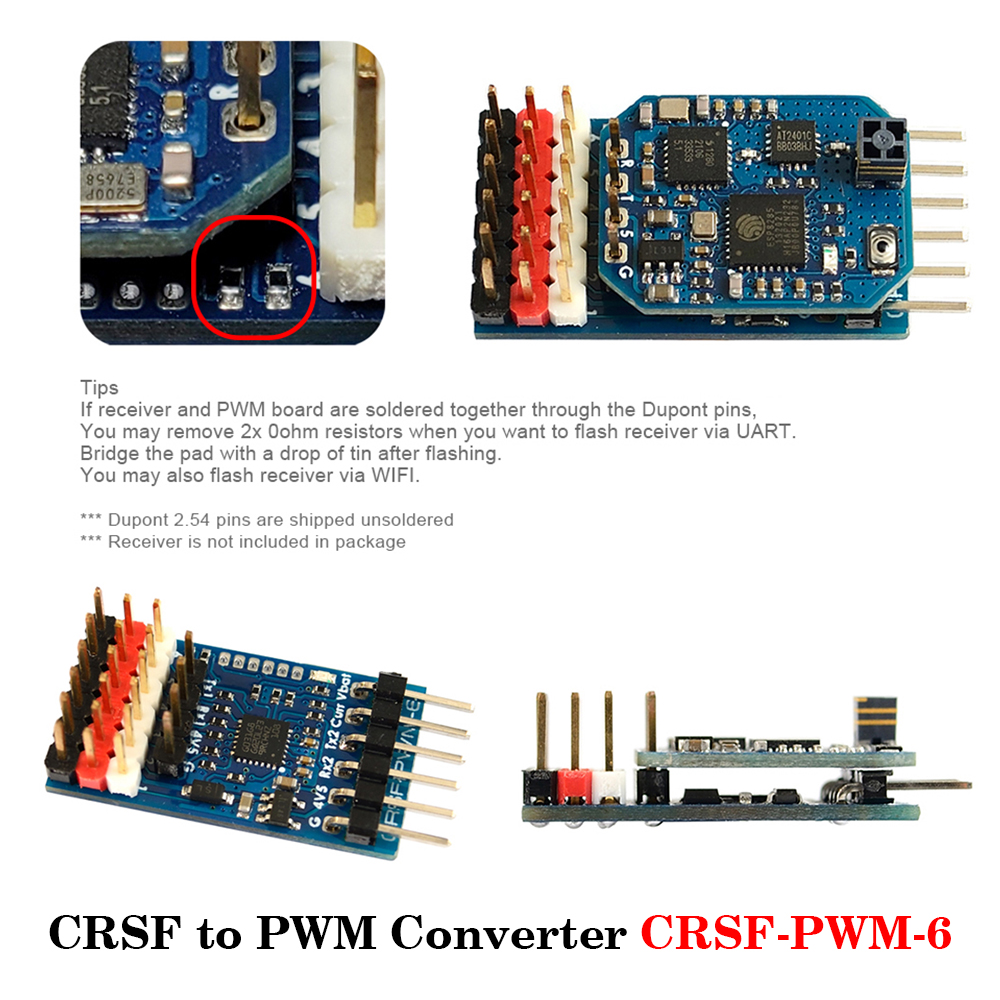

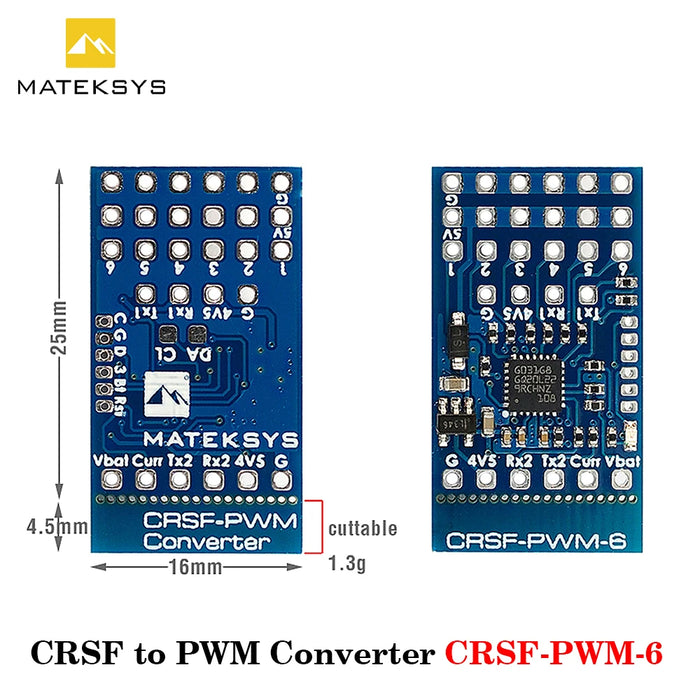

CRSF-PWM Converter, CRSF-PWM-6
- Compatible with CRSF protocol receiver only
- Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
- 6x PWM outputs
- PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
- 2x UARTs (for Receiver and GPS)
- Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
- 36V Max. battery voltage sense (1K:10K voltage divider built-in)
- Compatible with external Current sensor (0~3.3V)
- Vbat and Current sensor scale configurable
- Failsafe value auto set
- Firmware upgradeable
- Rated voltage: 4~9V @5V pad, 0~36V @Vbat, 0~3.3V @Curr
- No 5V regulator built-in, Servos must be powered via 5V pad by external 5V source.
- 25mm x 16mm, 1.3g
- Packing: 1x CRSF-PWM-6, Dupont 2.54 pins

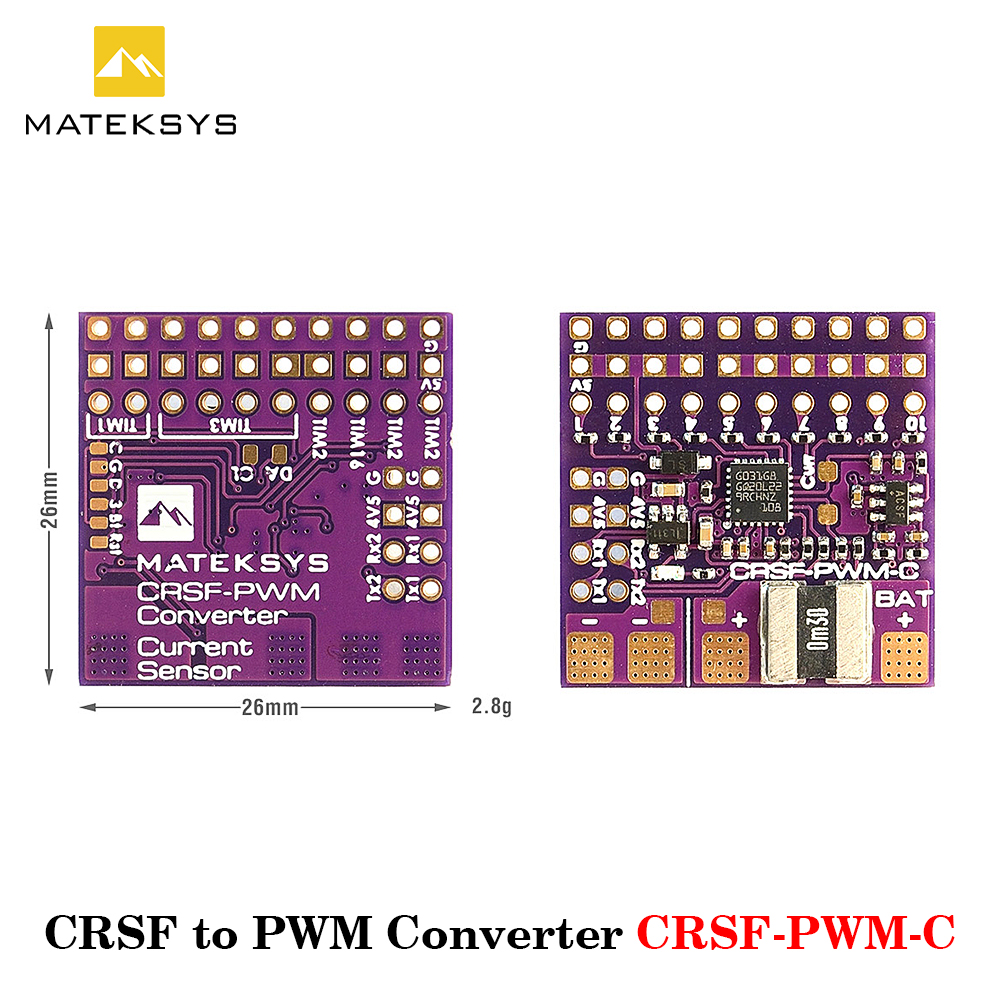

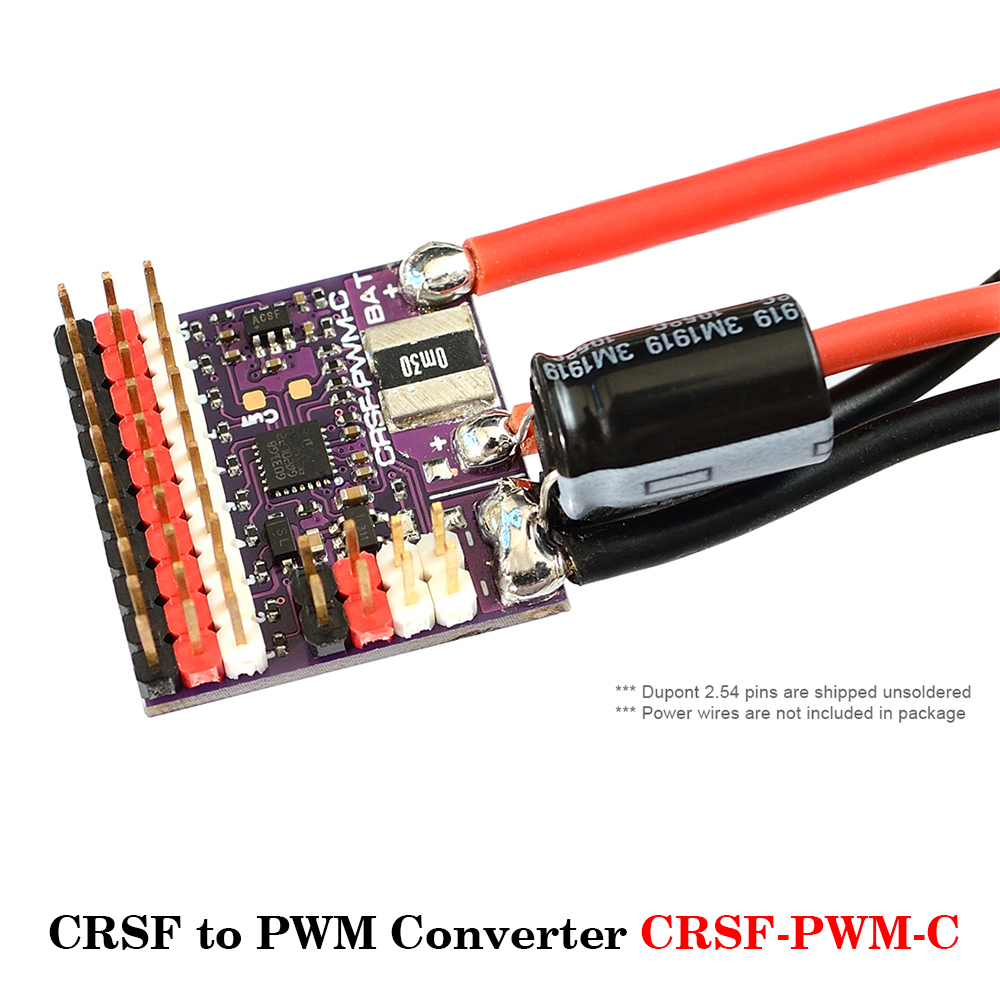

CRSF-PWM Converter, CRSF-PWM-C
- Compatible with CRSF protocol receiver only
- Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
- 10x PWM outputs
- PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
- 2x UARTs (for Receiver and GPS)
- Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
- 36V Max. battery voltage sense (1K:10K voltage divider built-in)
- Current sensor built-in (90A continuous /220A Peak), current scale = 150 by default
- Vbat and Current sensor scale configurable
- Failsafe value auto set
- Firmware upgradeable
- Rated voltage: 4~9V @5V pad, 0~36V @BAT+
- No 5V regulator built-in, Servos must be powered via 5V pad by external 5V source.
- 26mm x 26mm, 2.8g
- Packing: 1x CRSF-PWM-C, 1x low ESR capacitor, Dupont 2.54 pins

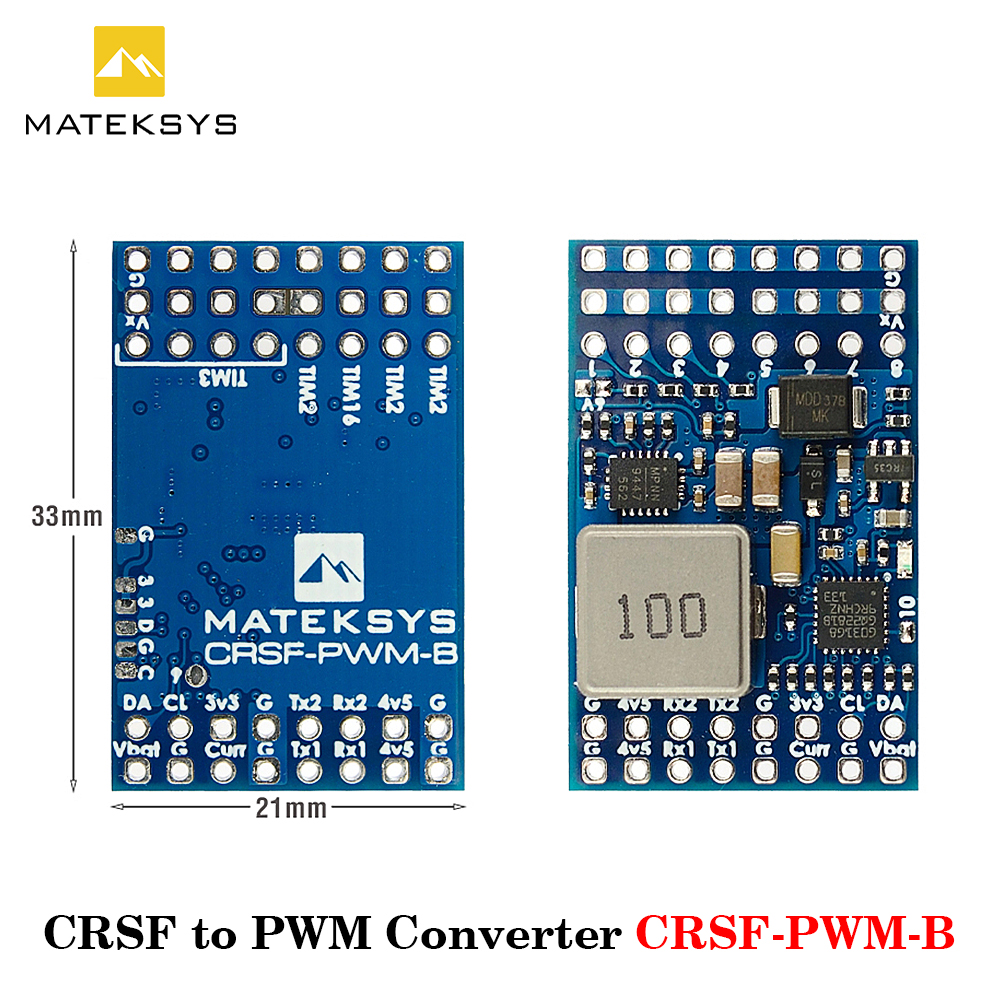

CRSF-PWM Converter, CRSF-PWM-B
- Compatible with CRSF protocol receiver only
- Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
- 8x PWM outputs
- PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
- 2x UARTs (for Receiver and GPS)
- Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
- 5.5~30V battery voltage input @ Vbat pad
- BEC 5V built-in (5A continuous /6A Peak)
- Compatible with external Current sensor (0~3.3V)
- Vbat and Current sensor scale configurable
- Firmware upgradeable
- 33mm x 21mm, 4.6g
- Packing: 1x CRSF-PWM-B, Dupont 2.54 pins
{}
No reviews yet. Be the first to leave a review.
What battery input does this product support?
This product supports up to 6S LiPo batteries, delivering strong and stable power for demanding setups.
