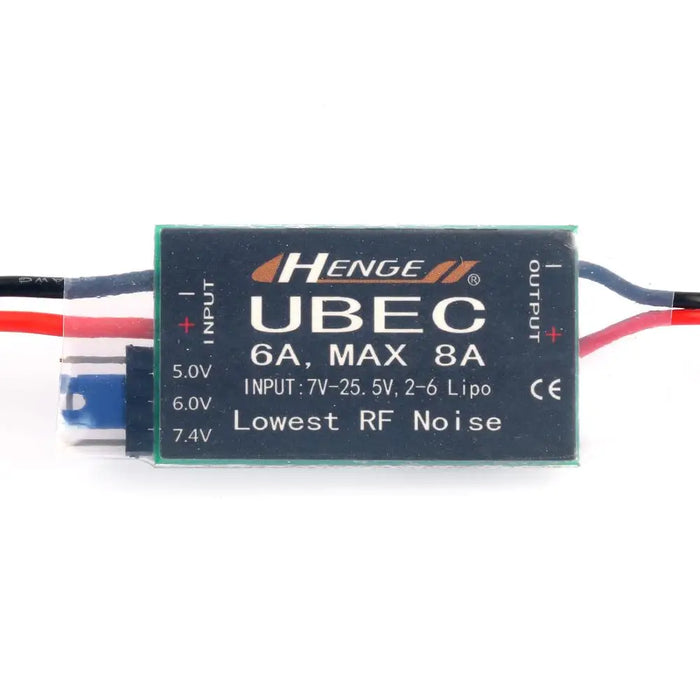

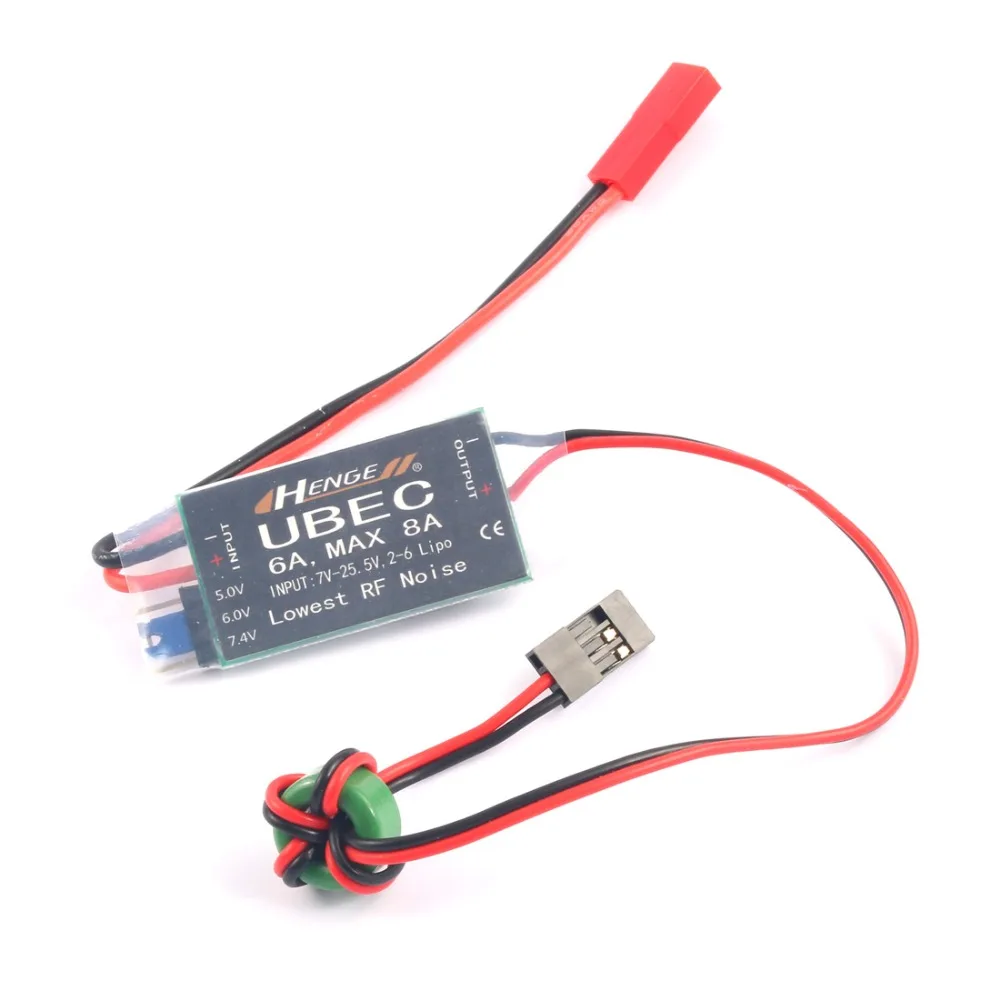

HENGE 6A UBEC Output 5v / 6v 6A / 8A,2-6S LIPO 6-16 cell Ni-Mh Input Switch Mode UBEC BEC LV for RC Airplanes
Options (2)
Quantity
Share
SPECIFICATIONS
Brand Name: MOTIVE-RC
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
Hign-concerned Chemical: None
Is Electric: No Battery
Material: Plastic
Model Number: HENGE 6A UBEC
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Connectors/Wiring
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: As below shown
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Adapter
Use: Vehicles & Remote Control Toys
Wheelbase: Bottom Plate
semi_Choice: yes
Product Specifications:
1 Input voltage: 7V-25.5V(2-6S LIPO/ 6-16 cell Ni-Mh)
2.Output voltage: 5V/6A or 6V/6A
3.Current: 6A peak 8A (less than 15 seconds)
4.Weight: 14g
5. Size: 39 x 21 x 6mm (LxWxH)
Features:
Adopt the most advanced synchronous rectification switching power supply control chip design, with over-current and thermal protection, the chip at maximum efficiency as high as 93%
The small size, light weight;
Output current, continuous output current capacity of 6A peak output current capability of 8A, fully guaranteed equipment, demand for electricity;
The output line to configure the filtering magnetic ring, greatly reduces the electromagnetic interference and ensure the receiver to work;
Has a wide voltage range of 7V-25.5V can be within the normal work;
Has a feature to prevent reverse input polarity, input power supply polarity mistake will not damage equipment;
Has a working state indicator, when the output to normal when the indicator light.
Package Included:
1 x HENGE UBEC
