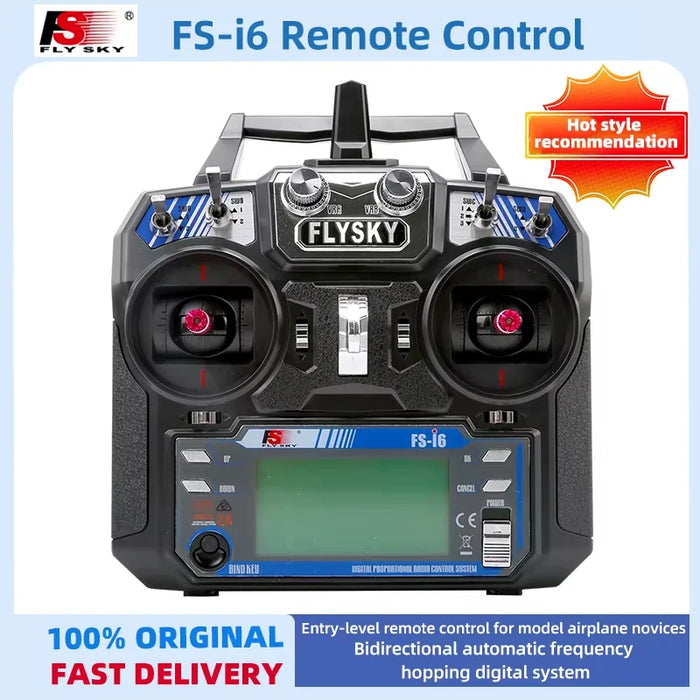

Flysky FS-i6 FS I6 2.4G 6ch RC Transmitter Controller FS-iA6 / FS-iA6B Receiver for Quadcopter DIY Drone

ThrustWare

4.9

Sales: 100+Pcs

Dhs. 323.99 ~~Dhs. 646.99~~ -49%

Options (5)

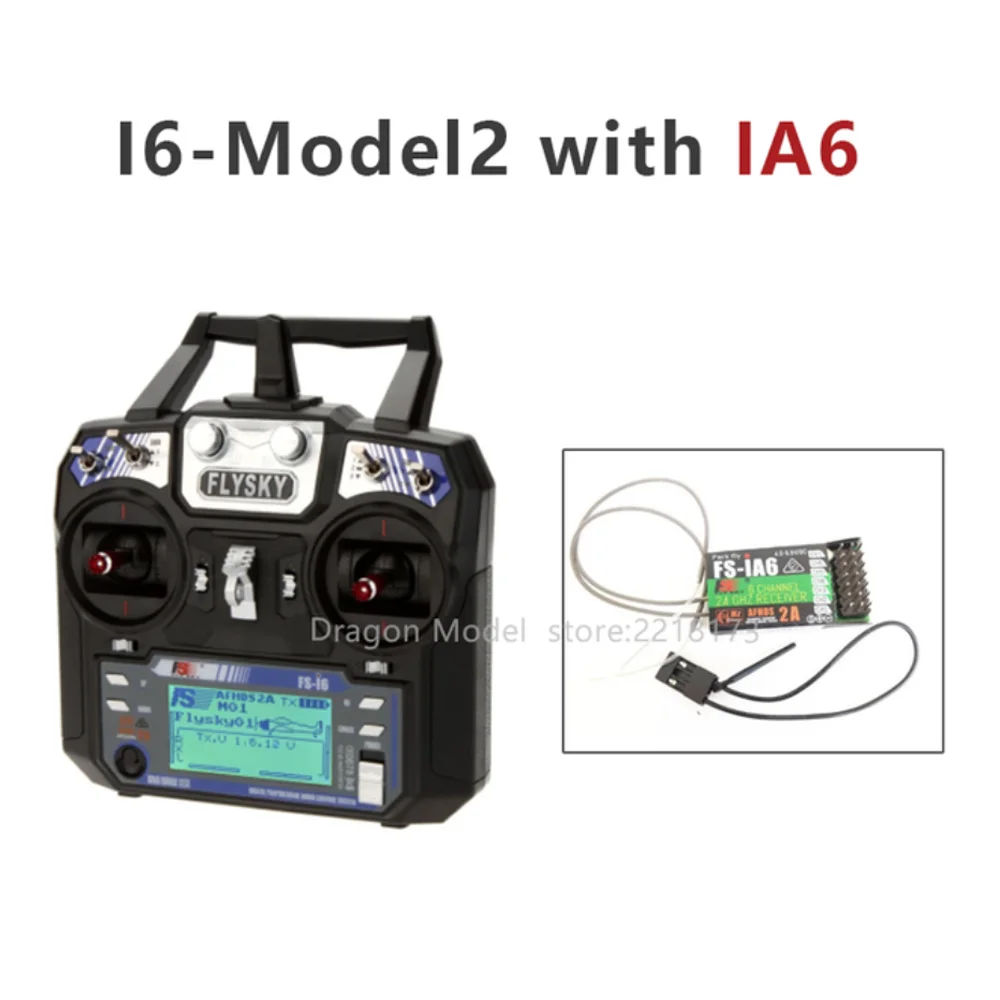

model 2 with ia6

model 1 with ia6

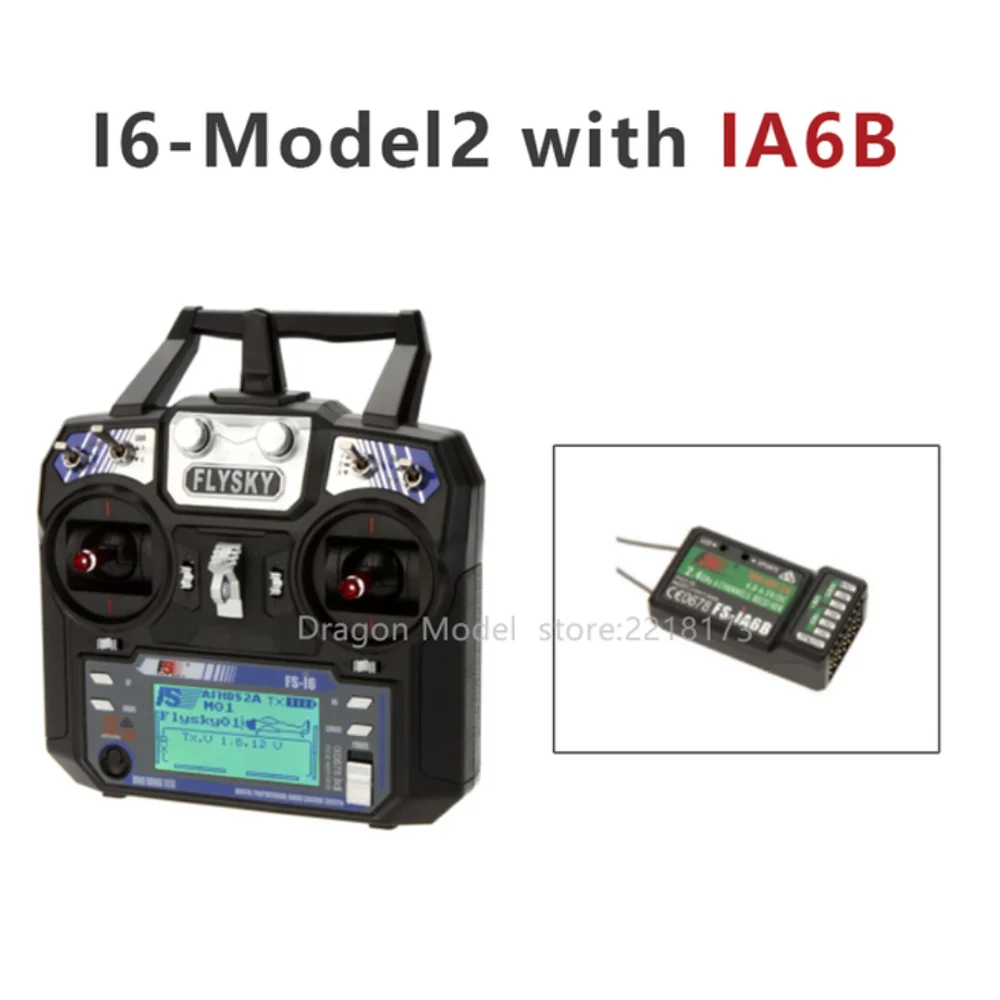

model 2 with ia6b

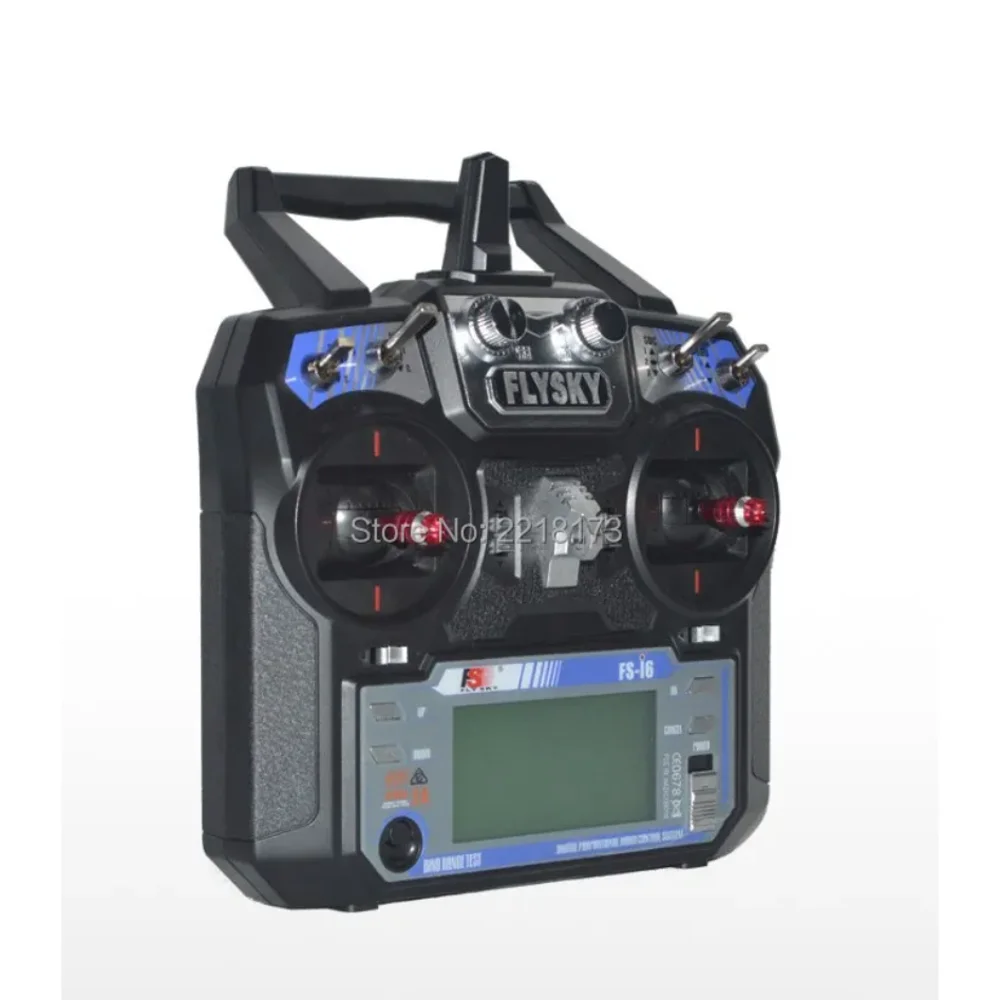

Only I6 Model 1

Only I6 Model 2

Quantity

In Stock Expected ship within 48 hours after order.

Estimated Transit Time: 20-25 Days.

Free Shipping | For order over $99

2 Years Warranty | Hassle-free 24-month warranty

Easy Return and Exchange | 7-Day No-Reason Returns

Professional Support | 24-hour response

Payment | Every order you place with us is safe & secure

Dhs. 323.99 ~~Dhs. 646.99~~

SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

For Vehicle Type: Airplanes

Hign-concerned Chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: FS-i6

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Radio Systems

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Use: Vehicles & Remote Control Toys

Transmitter Specfications:

Channels: 6
Model type: fixed-wing/glider/helicopter
RF range: 2.405-2.475GHz
Bandwidth: 500KHz
Band: 142
RF power: less than 20dBm
2.4G system: AFHDS 2A and AFHDS
Code type: GFSK
Sensitivity: 1024
Low voltage warning: less than 4.2V
DSC port: PS2; output: PPM
Charger port: no
ANT length: 26mm * 2(dual antenna)
Power: 6V 1.5AA * 4
Display mode: Transflective STN positive type,
128 * 64 dot matrix VA72 * 39mm, white backlight.
Size:174 * 89 * 190mm
Weight: 392g
Online update: yes
Color: black

FS-IA6B:

Description:

Brand Name: Flysky

Item Name: FS-iA6B

Channel: 6

Frequency Range: 2.4055--2.475GHZ

band Width Number: 140

Transmitting Power: ≤ 20dBm

RF Receiver Sensitivity: -105dbm

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Encoding: GFSK

Antenna Length: 26mm * 2 (dual antenna)

Input Power: 4.0-6.5V DC

Dimension: 47 x 26.2 x 15mm

Weight: 14.9g

Color: Black

i-Bus Interface: Yes

Data Acquisition Interface: Yes

Model Type: Airplane / Glider / Helicopter

Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

FS-IA6 :

2.4GHz AFHDS 2A system

2.4G modes: Automatic frequency second generation digital systems

Encoding: GFSK

i-BUS Interface: No

Data Acquisition Interface: No

Certification: CE0678,FCC

Usage: Suitable for RC Airplane / glider / helicopter

Compatible Transmitter: for Flysky FS-iA6

The Standard 2.4Ghz 3-Channel Receiver for RC car and boat .

Compatible with FS 2.4Ghz Surface Transmitter, very easy to bind.

channels: 3 channels

model type:airplane,glid

modulation:GFSK

code type:PPM

frequency:2.4G

Features:
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling!

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
