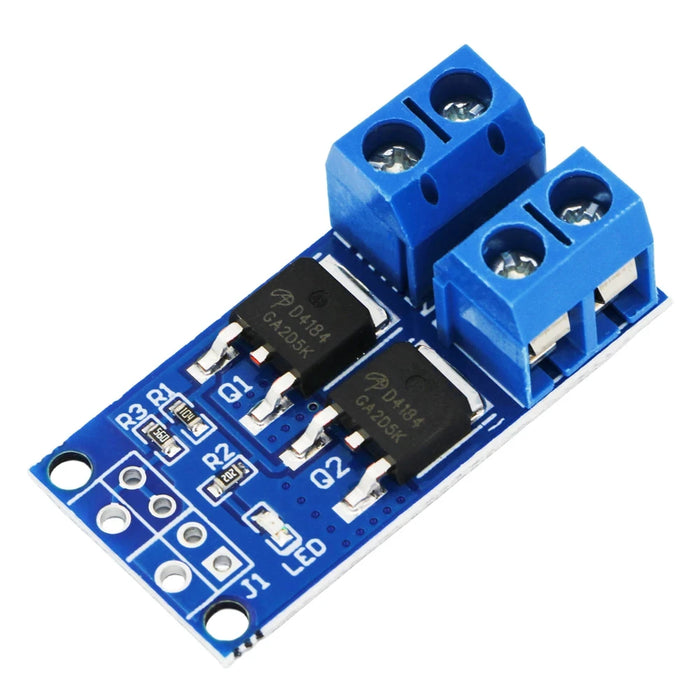

DC 5V-36V 15A Max 30A 400W Dual High-Power MOSFET Trigger Switch Drive PWM Regulator Adjustment Motor Speed Control Board Module
Options (3)
Quantity
Share
SPECIFICATIONS
Application: Computer
Brand Name: NoEnName_Null
Choice: yes
Condition: New
Dissipation Power: 15A 400W
Functions: Electronic Module
Hign-concerned Chemical: None
Operating Temperature: -40-+85
Origin: Mainland China
Package: SMD
Range of application: Switch And Sensor For Arduino STM
Supply Voltage: DC 5V--36V
Type: Module
is_customized: Yes
semi_Choice: yes
Module Highlights:
1. The use of imported dual-MOS parallel active output, lower resistance, more current, strong power. At room temperature to provide current of 15A, 400W power;
2. Wide voltage input, support PWM;
3. Easy to control high power devices.
Product Specifications & Applications:
1. Working voltage: DC 5V - 36V;
2. The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal can be supported frequency range 0--20KHZ.
3. Output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power 400W!
4. Application: High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; motor speed control, lamp brightness.
5. Service life: unlimited-off;
6. Working temperature: -40-85 ℃;
7. Size: 3.4 * 1.7 * 1.2cm.
